In Quant desktop, you can link a planogram in the Store Editor to specific equipment using the Link to standalone planogram (P) tool.

Instructions:

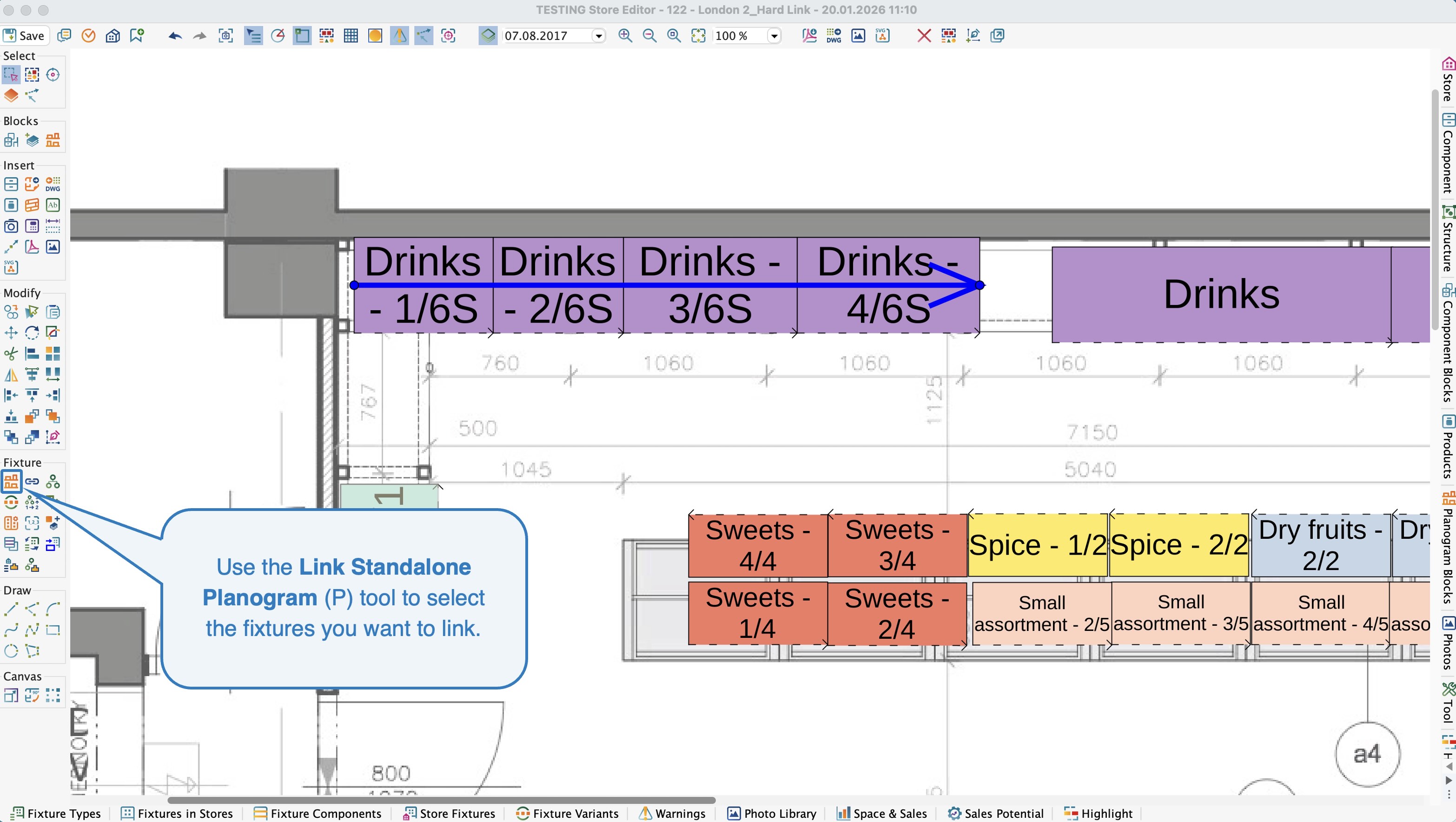

1. Select the Link Standalone Planogram tool, click on the first piece of fixture, and draw an arrow of the selected range across all fixtures to be linked to the standalone planogram.

2. Confirm your selection by pressing the Enter.

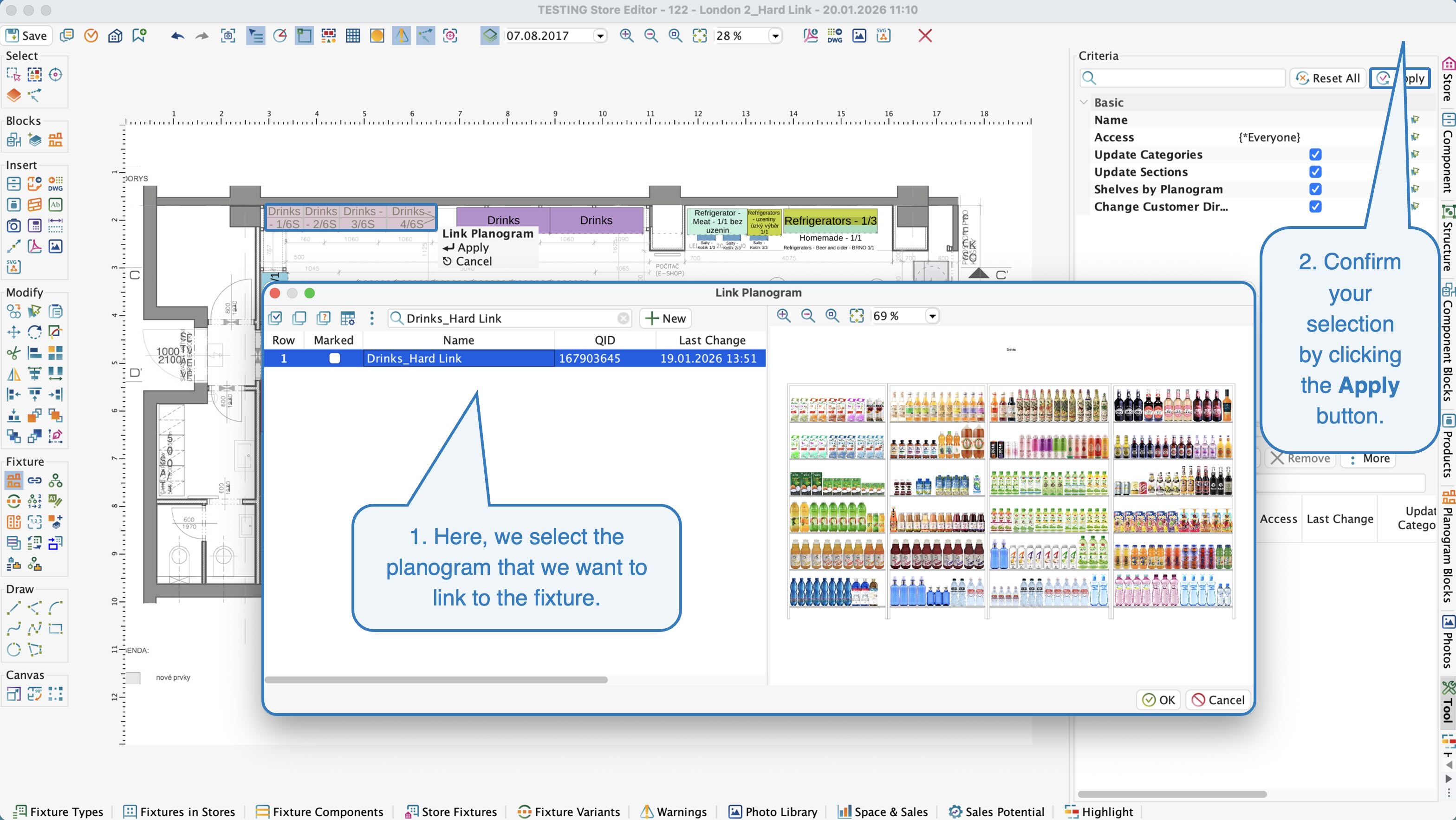

3. A dialog with a list of planograms will appear, where you can search for the required planogram.

4. After confirmation, you must complete the action by clicking the Apply button.

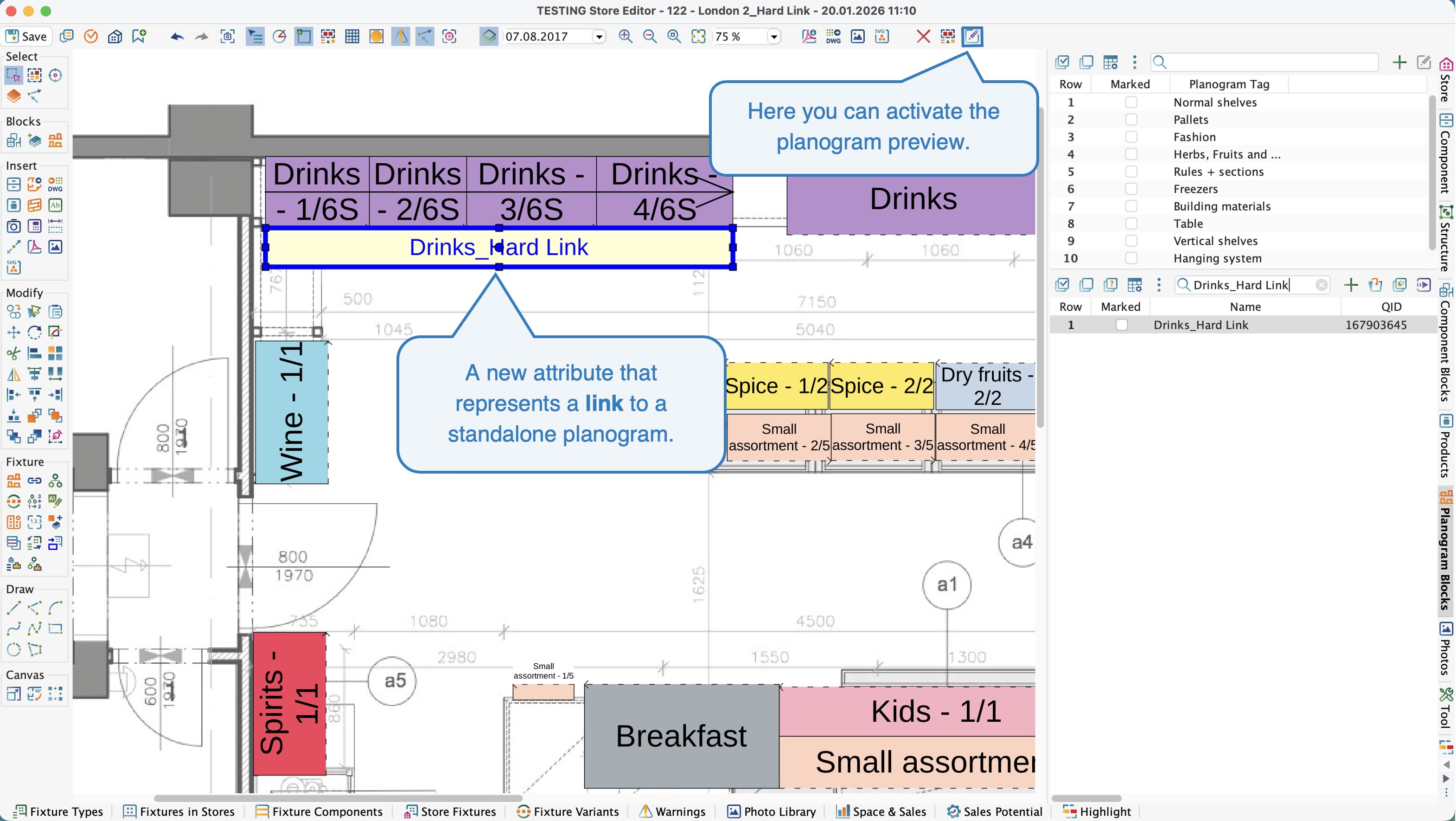

5. We can now see a new graphic element on the floor plan with information about the linked planogram. When this field is activated, you can also easily access a preview of the planogram using the button in the top bar.

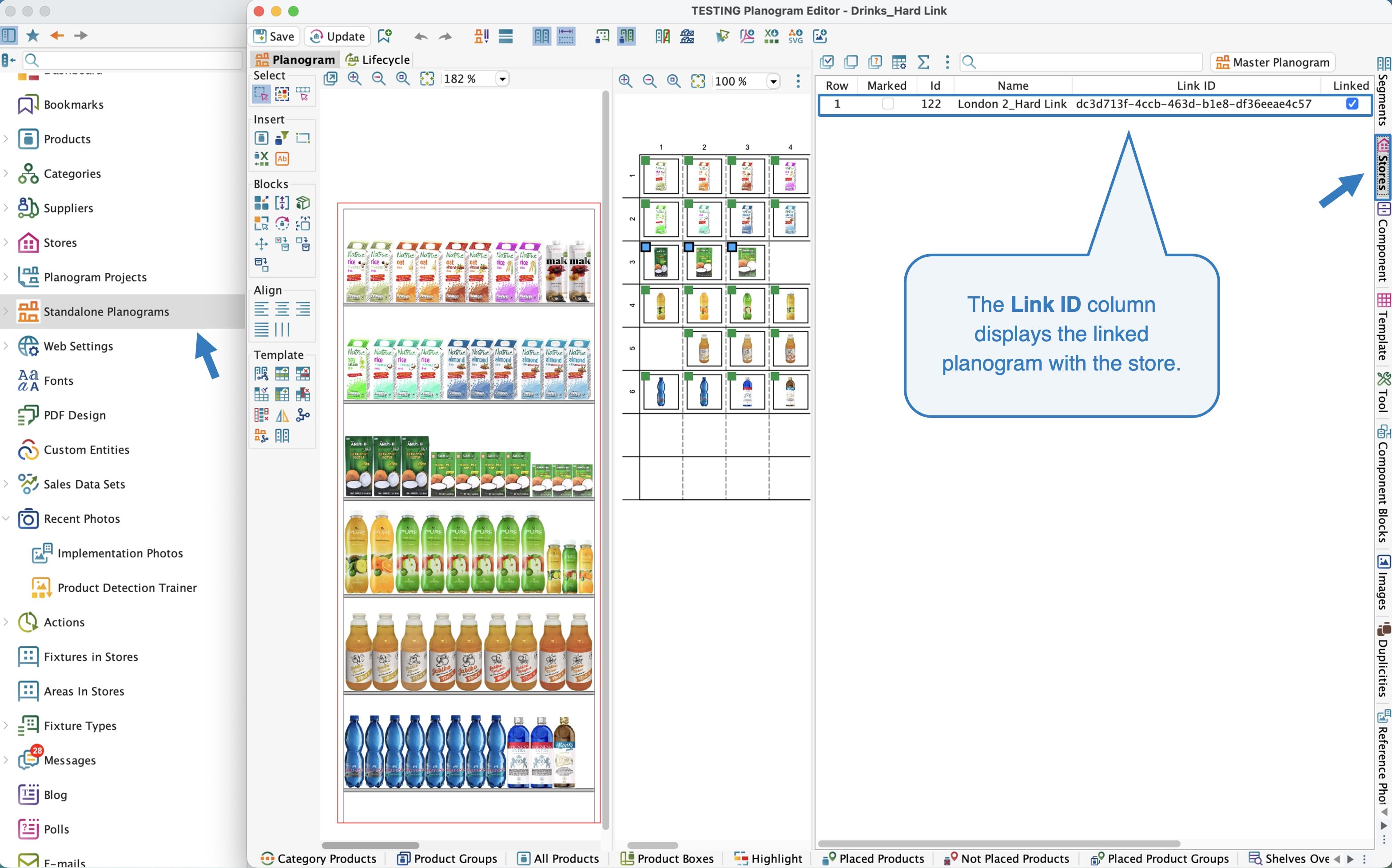

6. In the Standalone Planograms section, in the details of the selected planogram, in the Store tab, we can see the verification of the planogram being linked to the store.

A more advanced feature for linking individual planograms with fixtures on the floor plan is the Automatic Linking of Individual Planograms feature. For more information, see the news item Automatic linking of Standalone planograms.
