Graphic banners are an essential part of accurately visualizing the planogram on fixtures. By inserting graphic images, you can create a precise preview of the planned planogram.

Where can you find the image settings?

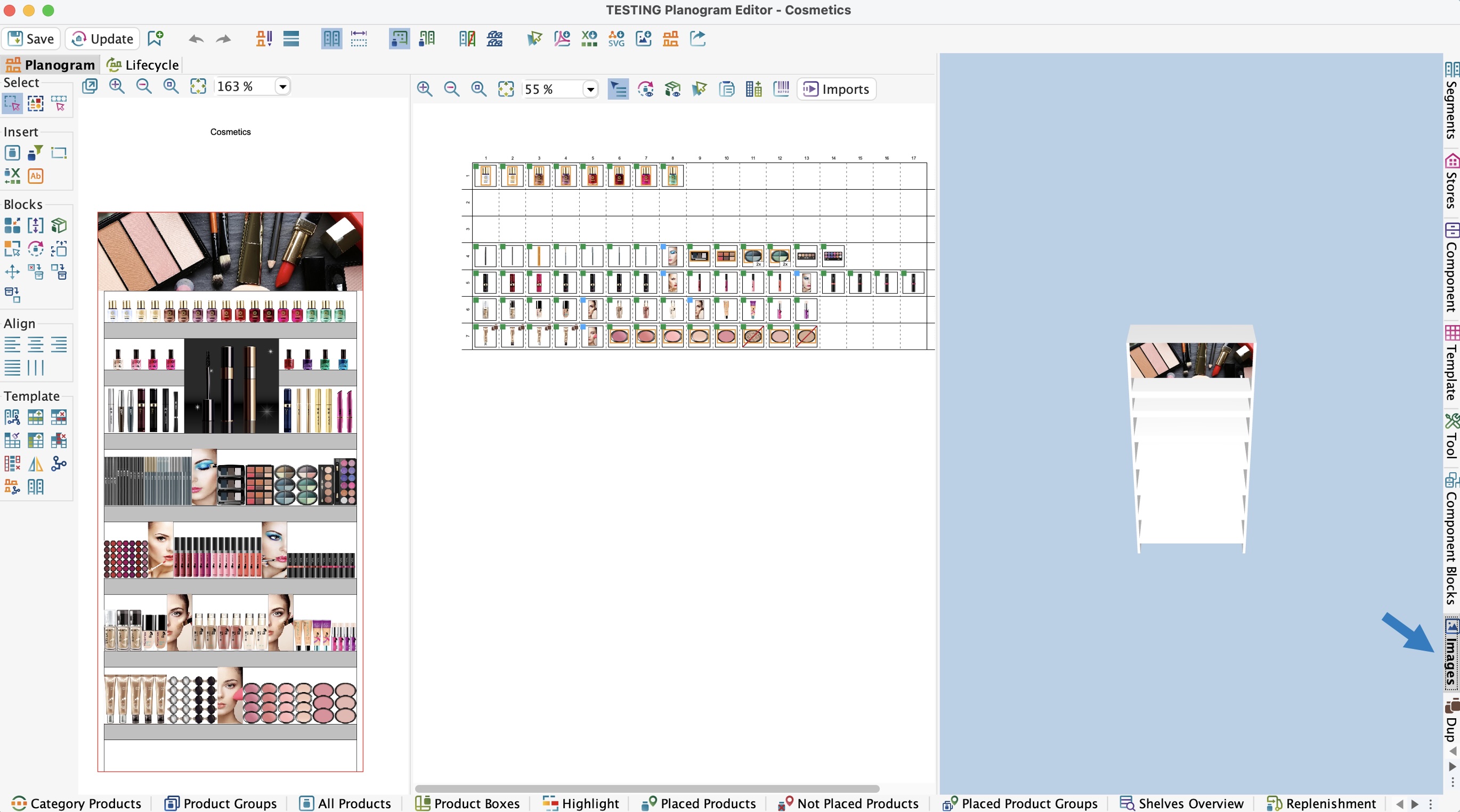

You can find the images in the right-hand sidebar of the Planogram Editor or Project Editor under the Images tab.

Images

Image library

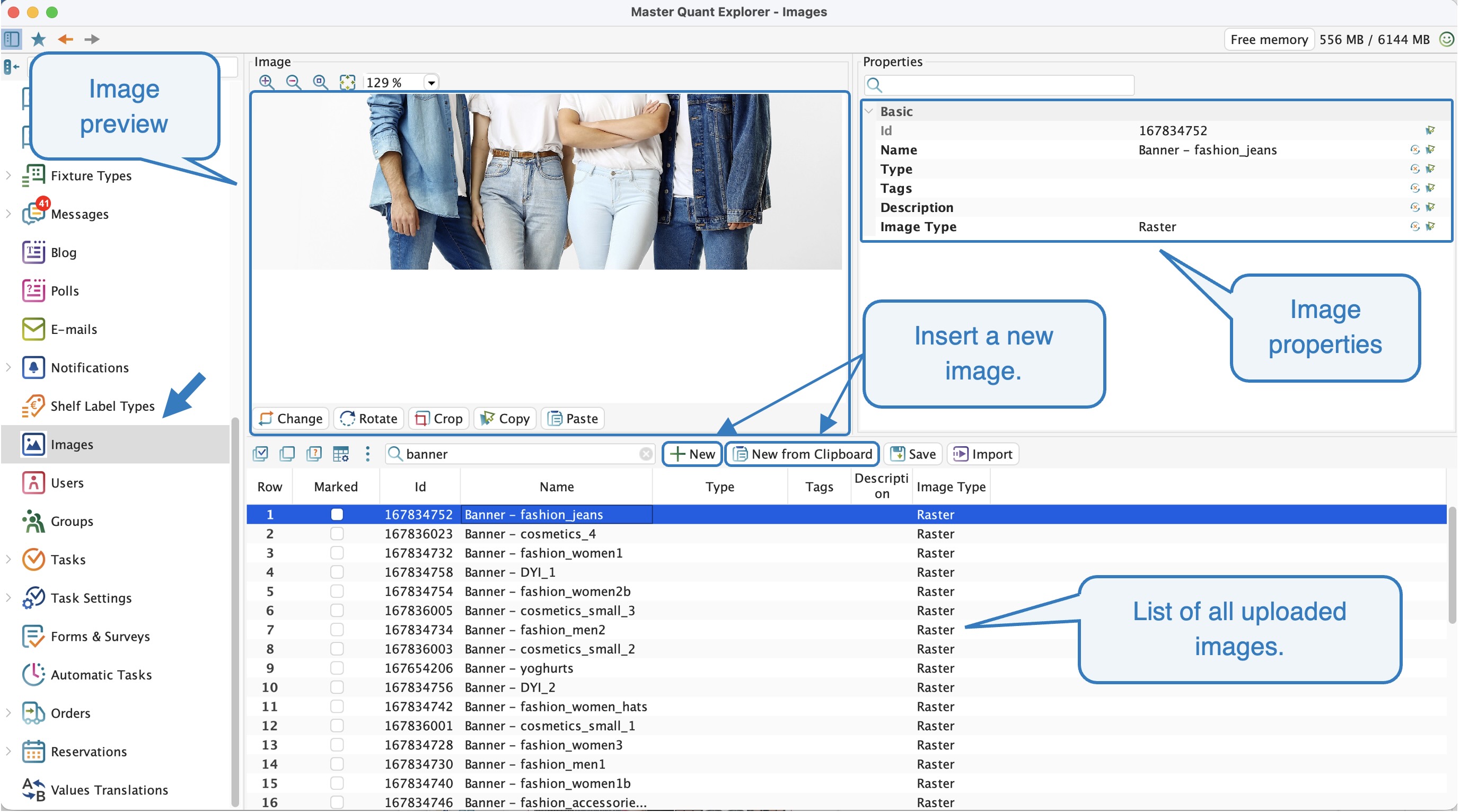

Before you start adding images to fixtures, you must upload them to the image library, which you can find in Quant Explorer under the Images section.

The Images tab is divided into 3 sections:

• • List of all uploaded images - here you will find all uploaded images.
    • New - allows you to upload a new image.
    • New from Clipboard - uploads a copied image to the list.

  • Image Preview - displays the image from the selected row in the list of all uploaded images.
  • Image Properties - here you can edit the image properties. Change its name, add a type, tag, or description.

Image library

Images

The Images tab opens a panel displaying the fixture in 3D. Here you can choose where you want to place the image. There are several options to choose from, including the top panel, shelfs, or boards.

How do you upload an image to the planogram?

First, you need to select the area where you want to upload the image. There are two options:

Option 1

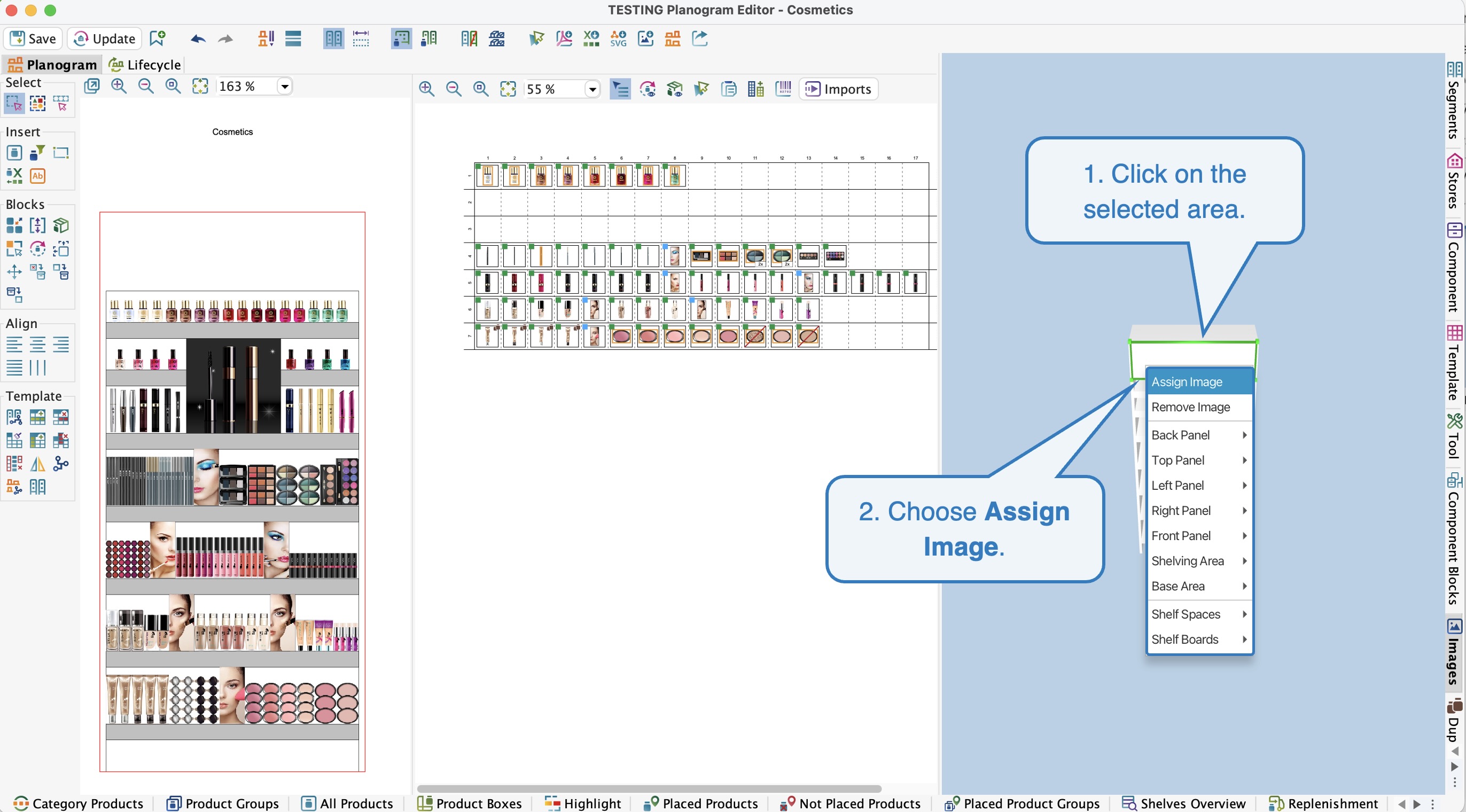

1. Click to select the area where you want to upload the image. The selected area will be outlined in green.
2. Right-click on the 3D preview of the fixture to display the context menu.
3. Select the Assign Image option.

Image placement

Option 2

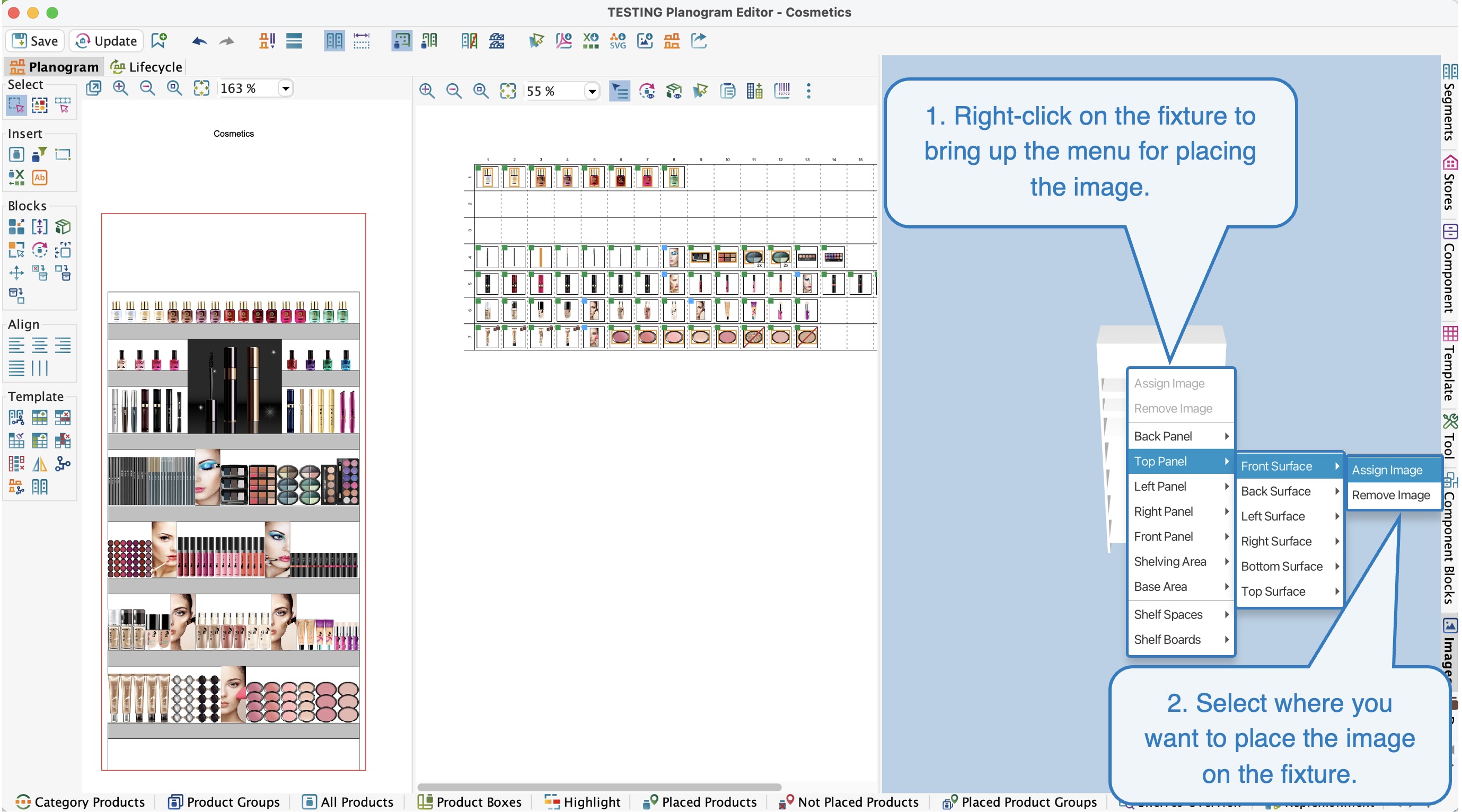

1. Right-click on the 3D preview of the fixture to display the context menu.
2. In the menu, select the location to which you want to save the image.
3. Select the Assign Image option.

Image placement

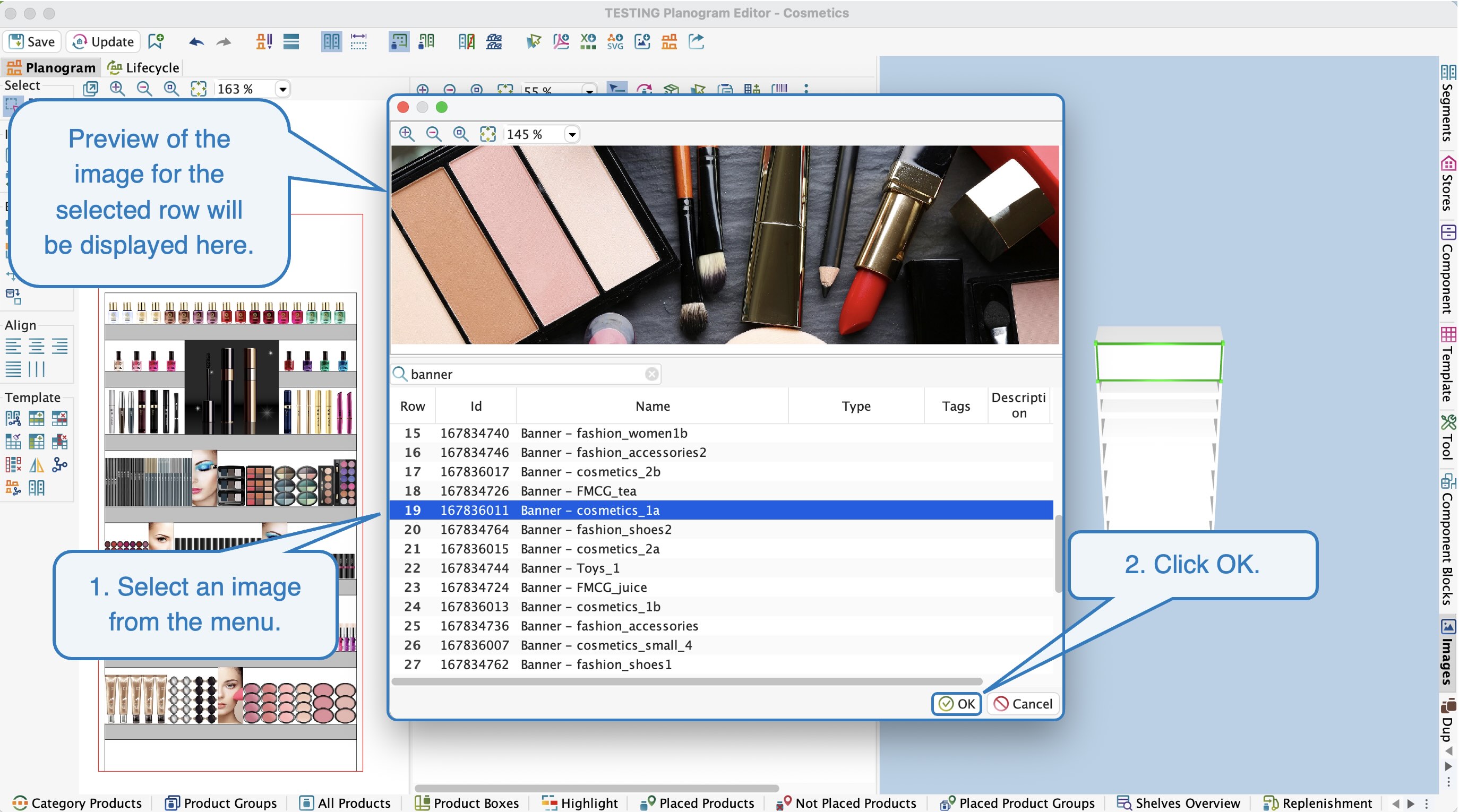

A menu for selecting an image will open.

Select an image

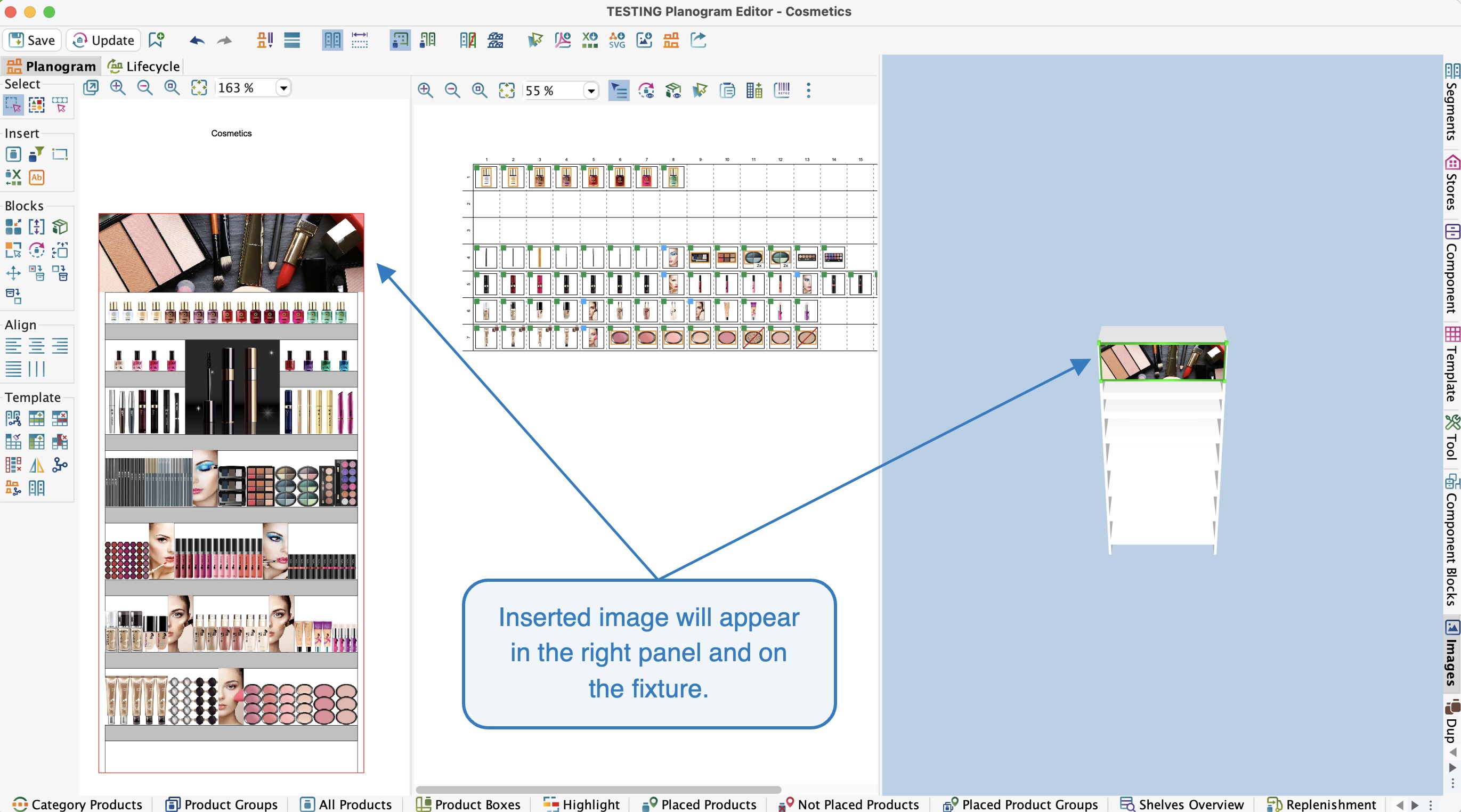

After confirmation, an image will appear on the fixture in the planogram.

Image display

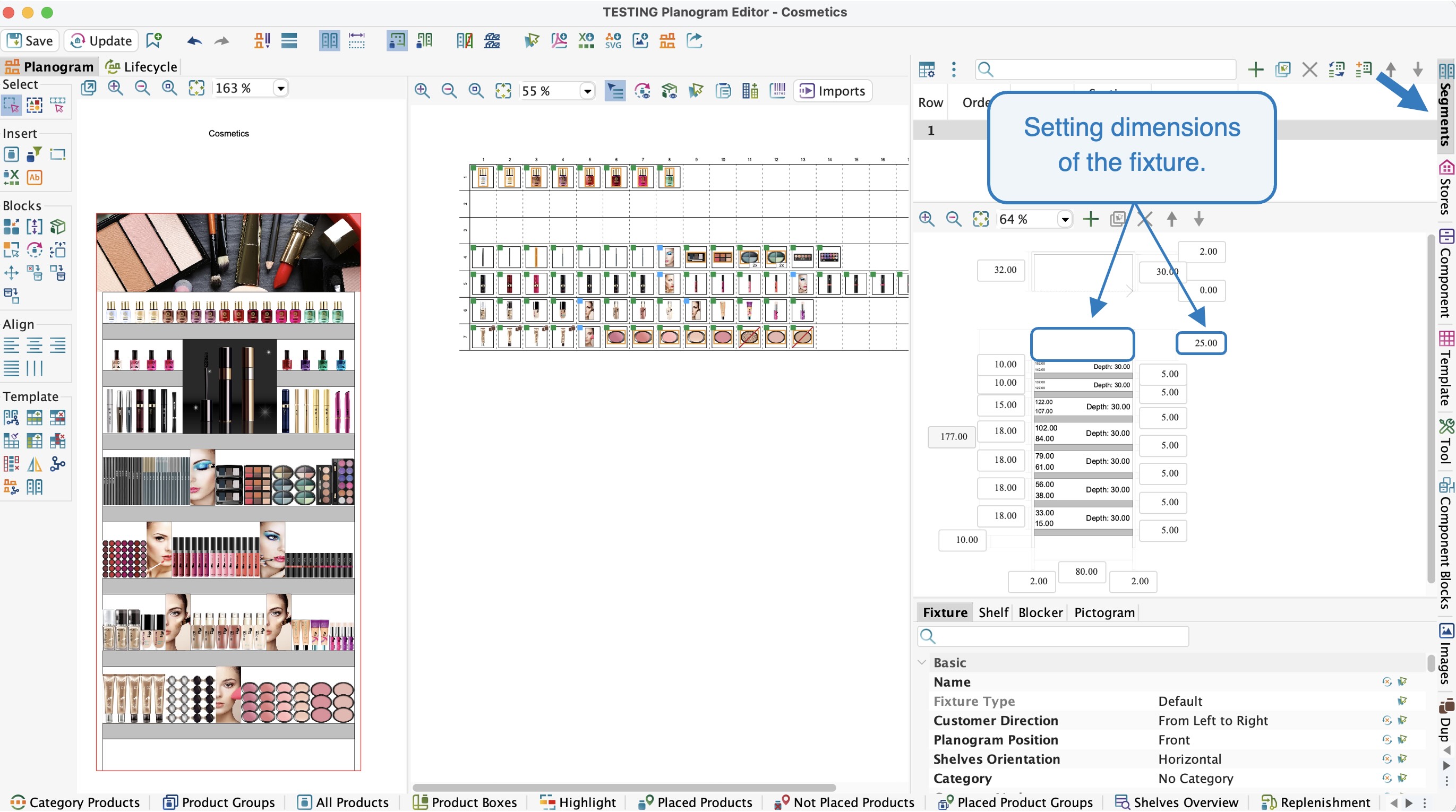

When inserting images into the fixture, be sure to check fixture's dimensions settings, which can be found in the right-hand sidebar under the Segment tab. In our case, this involves setting the top panel to a sufficient height.

Setting Fixture Dimensions

How do you remove an image from a planogram?

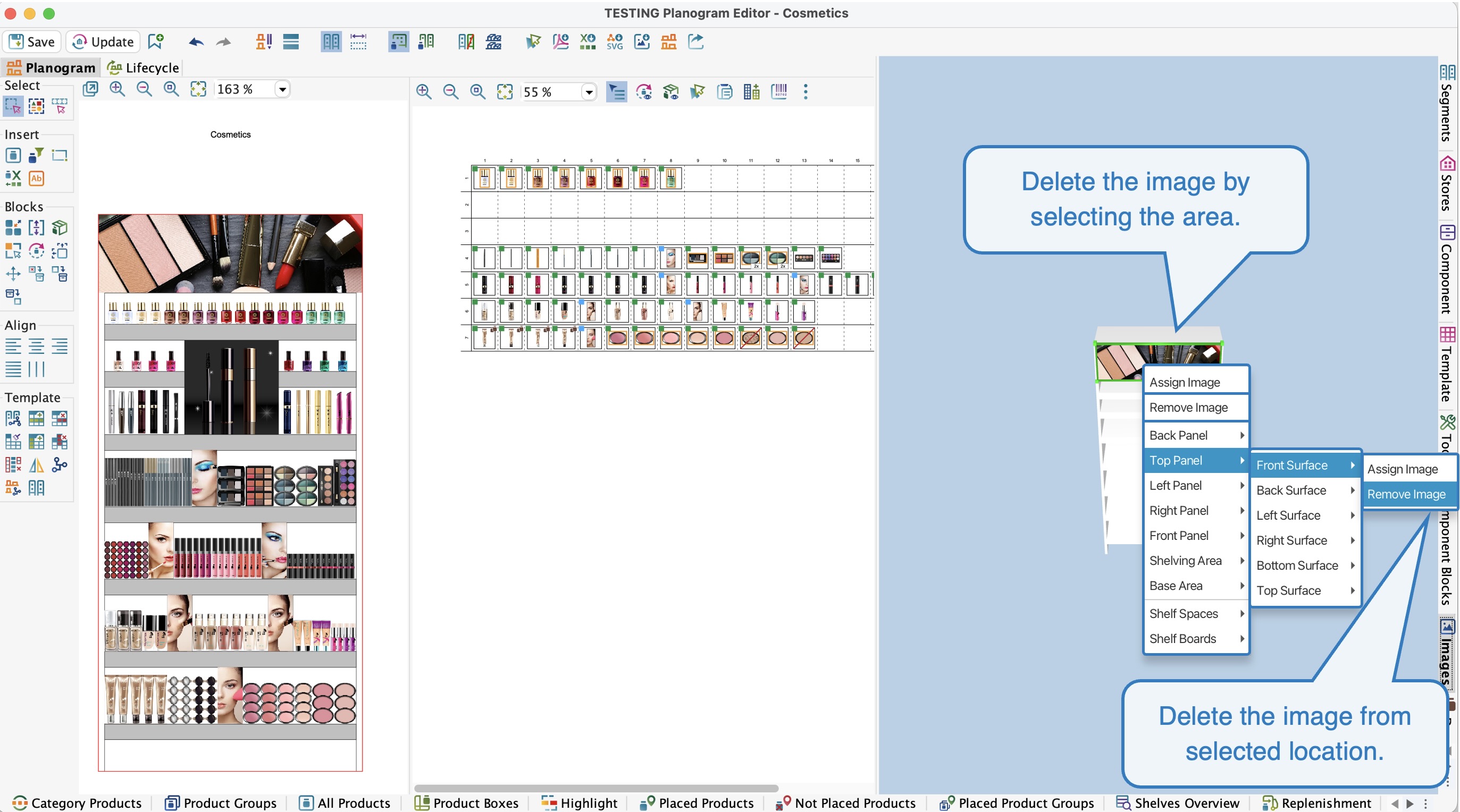

1. Click to select the area from which you want to remove the image. The selected area will be outlined in green.
2. Right-click on the 3D preview of the fixture to display the context menu.
3. Select the Remove Image option.

OR

1. Right-click on the 3D preview of the fixture to display the context menu.
2. In the menu, select the area from which you want to remove the image.
3. Select the Remove Image option.

Delete image
